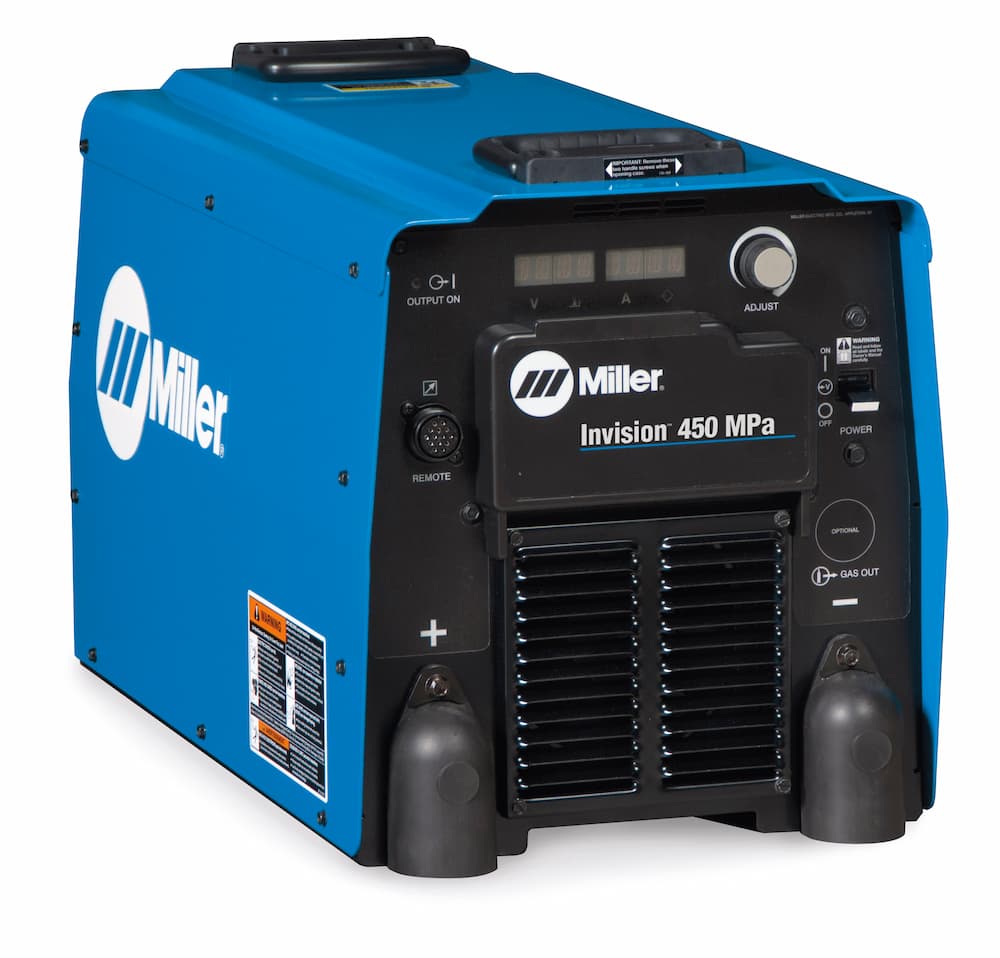

Miller Invision 450 MPa 575 - 907486


MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.


Gtin DISCONTINUED SKU: 907486 Categories: , ,

Synergic Pulsed MIG

  • As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.


  • Cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.

Wind Tunnel Technology™

  • Protects internal components, greatly improving reliability.

SharpArc® technology

  • Fine tunes puddle fluidity in Pulsed MIG (GMAW-P) welding.

Profile Pulse™

  • Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

Recommended Aluminum Solution

  • Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with the 74 MPA Plus feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.

Built-in MIG and Pulsed MIG programs

  • Automatically set the optimal parameters for a wide variety of wires making it easy to set up and use.


Title Invision™ 450 MPa 575 V
Industries Interests Aerospace
Heavy Equipment Manufacturing
Boat / Yacht
High Purity Processing
Input Voltage 575 V
Input Phase 3-Phase
Input Hz 60 Hz
Current Type DC
Rated Output 10-38 V,5-600 A
Portability Handle(s)
Running Gear / Cart (Optional)
Net Width 14.5 in
Net Height 17.25 in
Net Length 27.25 in
Net Weight 122 lbs
Warranty 3 Years
Miller’s True Blue Warranty
Gtin DISCONTINUED SKU: 907486 Categories: , ,
Weight 122 lbs
Dimensions 27.25 × 14.5 × 17.25 in
