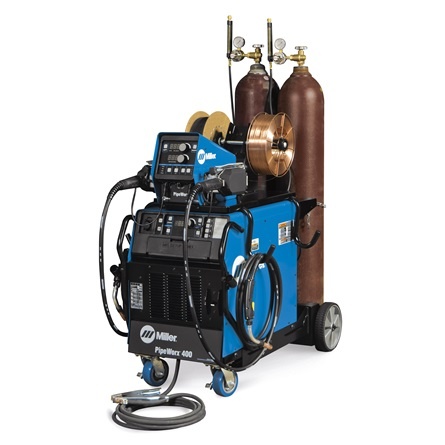

Miller Pipeworx 400 Welding System 575V - 951382

-

Simplified and optimized for pipe fabrication shop welding, the PipeWorx systems streamlined set-up with one touch welding, quick process changeover, and Pulsed and Modified Short-Arc MIG processes, makes training and turn-around times faster than ever before.

$23,993.00

Business Financing Available

Gtin replaced 951000095 SKU: 951382 Categories: , ,

Features and Benefits

Simple Process Setup
  • Clearly labeled controls in easy-to-understand welder terminology.
  • Requires just a few basic steps to set up a new weld process, resulting in less training time and minimizing errors from incorrect setups.
  • The front panel was designed by welders for welders. Only backlit controls are adjustable to eliminate confusion.
  • Memory feature stores four programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder). Beneficial when using multiple procedures, multiple process parameters or multiple welders and eliminates the need to remember parameters.
Quick Process Changeover
  • No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx ‘Quick-Select’ technology automatically selects the welding process, the correct polarity, cable outputs and welding parameter.
  • Quick process changeover eliminates set-up time for switching cables and gas hoses. Also, reduces the risk of weld reworks due to incorrect cable connection.
Multiprocess Machine
  • Weld processes are optimized to deliver superior arc performance and stability specifically for root pass, fill and cap pipe welding.
  • Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored and MIG welding processes.
  • Also features the advanced RMD® and Pulsed MIG processes that deliver superior quality welds, increase productivity, and reduce rework and training.
Streamlined System
  • Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in the dusty shop environment.
  • Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area. Cables remain connected to the power source and do not need to be switched for the different welding processes.
  • All system components have been selected to meet the needs of a pipe fabrication shop.
PipeWorx ROI Calculator
The PipeWorx ROI calculators are designed to help you determine your unique return on investment and payback based on your shop and utilizing the savings that PipeWorx Welding System delivers.

What´s Included

  • PipeWorx 400 Power Source, 575V
  • PipeWorx Dual Feeder with drive rolls (300366)
  • Two Bernard PipeWorx 300A MIG Guns (195400)
  • Side-mount Cable Hangers
  • Cable Kit with 25 ft. (7.6m) Work Sense Lead (300367)
  • Running Gear with Dual Cylinder Rack (300368)

Specifications

PROCESSES

Flux Cored (FCAW)
Pulsed MIG (GMAW-P)
RMD
Stick (SMAW)
TIG DC (GTAW-DC)
Air Carbon Arc Cutting and Gouging (CAC-A)
MIG (GMAW)

GENERAL SPECIFICATIONS

Title Pipeworx 400 Welding System 575V
Industries Interests Construction
Shipbuilding
High Purity Processing
Fabrication
Mechanical Contracting
Pipe Fabrication / Construction
Pressure Vessel
Weldable Metals Steel
Stainless Steel
Specialty Metals
Input Voltage 575 V
Rated Carbon Diameter 5/16 in (7.9 mm)
Input Phase 3-Phase
Input Hz 50 / 60 Hz
Current Type DC
Max Open Circuit Voltage 90 VDC
Wire Feed Speed 50 IPM – 780 IPM
Portability Running Gear / Cart (Standard)
Weld Output CC / CV
Warranty 3 Years
Miller’s True Blue Warranty
