FLEXIBLE CONFIGURATION. ENDLESS POSSIBILITIES.

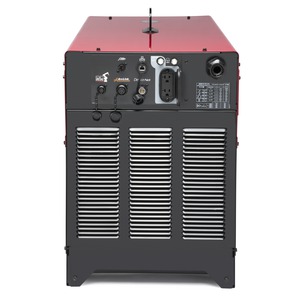

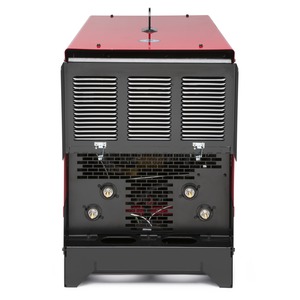

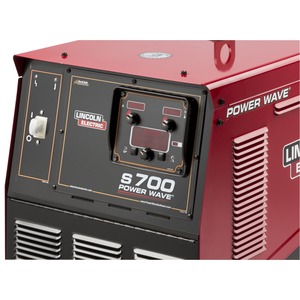

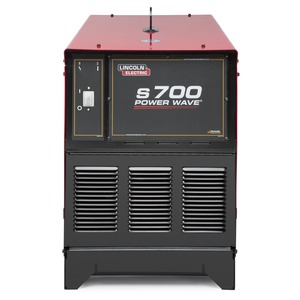

Choose the Power Wave® S700 model for high amperage, high duty cycle applications in the heavy equipment, transportation and other fabrication industries. Typically recommended for 1/16 inch (1.6 mm) wire diameter and up, the Power Wave®\ S700 can be used in semiautomatic, hard automation or robotic environments – even for high deposition synchronized tandem welding applications. The machine is also suitable for arc gouging.
- Wide Input Voltage Range – Set up operations almost anywhere (380-575 VAC, 3 phase, 50/60Hz voltage).
- Add AutoDrive® 19 Tandem modules to access waveform modes specifically designed for Synchronized Tandem MIG multi-arc applications. A sync connection is provided for easy tandem power source operation.
- Low Operating Cost – Operates at a high 88% efficiency with a 95% minimum power factor (at rated output).
- Severe Duty – Can be stored outdoors. IP23 rated to withstand harsh environments.
- iARC™ Digital Control – 90 times faster than the previous generation, delivering a responsive arc.
- Standard ArcLink®, Ethernet, and DeviceNet™ Communication – Offers remote process monitoring, control and troubleshooting.
- True Energy™ – Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations.
- Checkpoint™ – A cloud-based data collection tool allows customers to view and analyze welding data. Track equipment usage, store weld data, configure fault limits and more.
- Fan-As-Needed™ (F.A.N.) – Reduces power consumption and the amount of debris that gets drawn into the machine by shutting the fan down when it is not needed.
- Standard 115V (10A) AC Duplex Auxiliary Power Receptacle – Features patent pending Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
|DIMENSIONS (H X W X D)||30.1 in x 19.1 in x 36.7 in (765 mm x 485 mm x 932 mm)|
|NET WEIGHT||370.00 (167.83 kg)|
