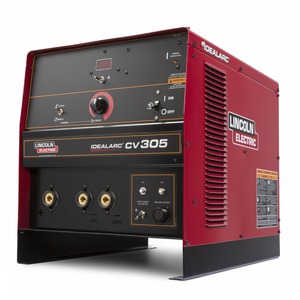

Idealarc® CV305 MIG Welder - K2400-1


-

Top Features

  • Two output connectors – Allow you to connect to high or low inductance for optimal arc control.
  • Digital Ammeter/Voltmeter – Display allows presets for added convenienceand accuracy.
  • Seven-year warranty on power rectifier.

Input Power

  • 208/230/460/3/60

Processes

MIG, Flux-Cored

$4,699.00

Gtin 00015082650197 SKU: K2400-1 Categories: , ,

You won’t find a more reliable power source.

This unit is the most compact unit in its class, yet it’s loaded with convenient features! A digital meter, line voltage compensation and remote/local control are all standard.

  • Two output connectors – Allow you to connect to high or low inductance for optimal arc control. Use low inductance output connection when short-arc welding, and high inductance output connection with spray and globular transfer welding.
  • Digital Ammeter/Voltmeter – Display allows presets for added convenience and accuracy.
  • Easy access Twist Mate® connection – On the front of the machine.
  • Quality & Reliability – Environmentally protected transformer and power rectifier are rugged and reliable.
  • Seven-year warranty on power rectifier.
INPUT POWER
  • 208/230/460/3/60
RATED OUTPUT
  • 315A/32.6V/100%
INPUT CURRENT
  • 51/48/24A
OUTPUT RANGE
  • 50-400A DC
  • 7-37V
DIMENSIONS (H X W X D) 24.6 in x 19.5 in x 27 in (625 mm x 495 mm x 686 mm)
NET WEIGHT 300.00 (136.08 kg)
Gtin 00015082650197 SKU: K2400-1 Categories: , ,
Weight 300.00 lbs
Dimensions 24.6 × 19.5 × 27 in
